Abstraction Calculation

An Abstraction Calculation applies a VB .Net code fragment to the values available in an invocation, and produces one named number. Its most common use is a ratio, for example the ratio of declined spend to total spend. The result is stored under the calculation’s name, so any later stage can read it as AbstractionCalculation.Name.

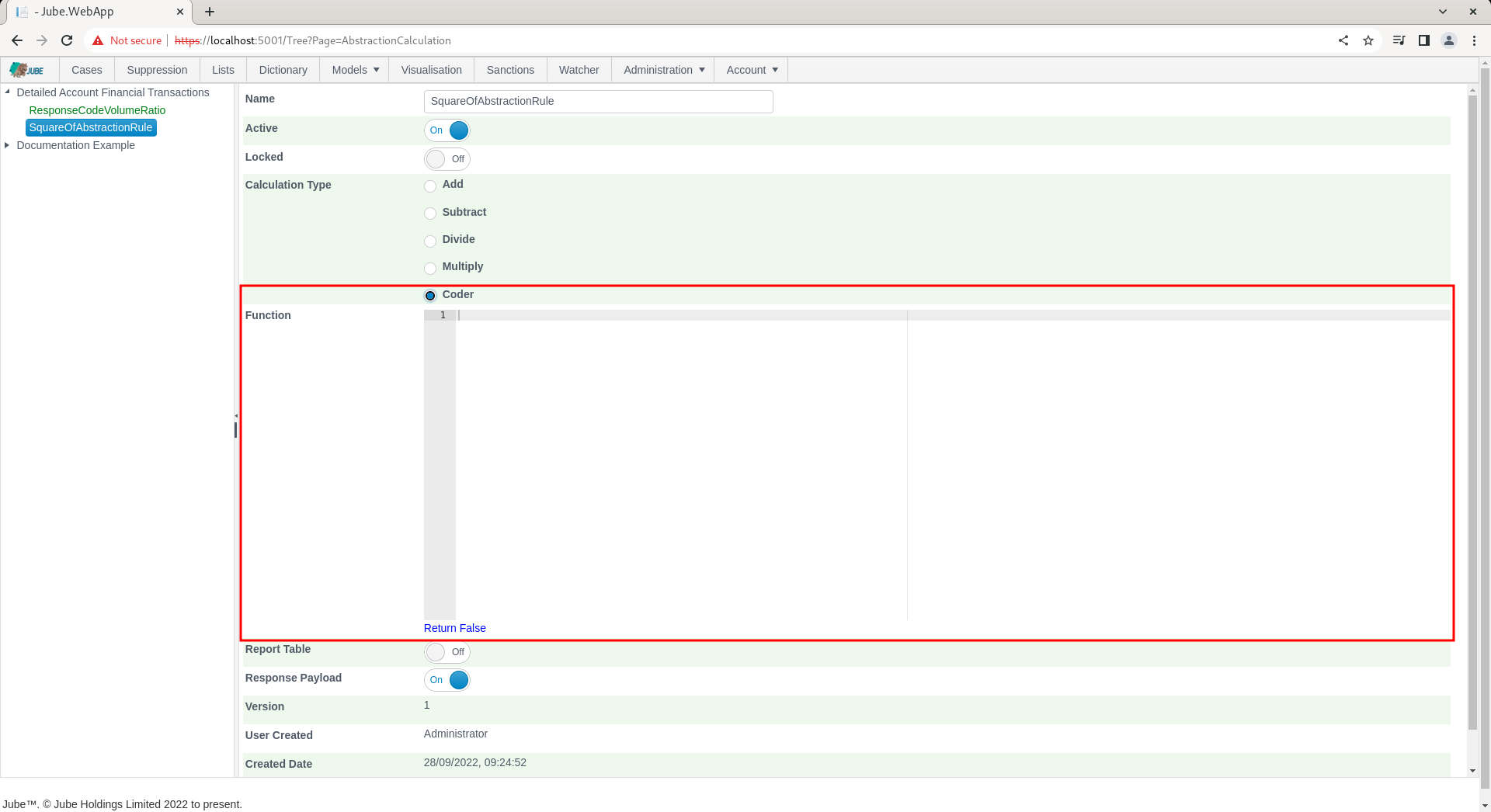

Every Abstraction Calculation is written as a function fragment. The earlier Add, Subtract, Divide and Multiply types, which took a Left and a Right Abstraction Rule from drop downs, have been removed, because the fluent calculation methods do the same in one line and reach every value in the invocation. Calculations saved as those types are converted, and the old columns dropped, when the database is migrated (see Migrating Add, Subtract, Divide and Multiply Calculations).

The name is required and limited to 256 characters, and must be unique within the Model. The function is required.

Values Available to a Calculation

A calculation runs after everything it can read has been produced in the invocation, so it can use any of:

Source	Token	Notes
Payload field	Payload.Amount	Numeric and Boolean fields. A Boolean is read as 1 or 0
Inline Script property	Payload.ScriptScore	Inline Script output is added to the payload before the calculation runs
Inline Function	Payload.FunctionScore	As above
TTL Counter	TTLCounter.Declined
Abstraction Rule	Abstraction.Velocity
Sanction	Sanction.PartyName	Throws when there is no match; an uncaught exception leaves the function’s result at zero
Dictionary	Dictionary.CountryRisk
An earlier Abstraction Calculation	AbstractionCalculation.First	Only if it has already run in this invocation. Calculations run oldest first, in the order they were created

Http and Exhaustive Adaptations, and Activations, run after Abstraction Calculations, so a calculation cannot read them.

The fluent calculation methods apply, for example Matched = TTLCounter.DeclinedSpend.RatioOf(Payload.Amount). See Calculations on continuous values for the full list and a table of recipes.

The page is available by navigating through the menu as Models > Abstraction » Abstraction Calculation:

Clicking the required model in the tree towards the left hand side exposes the page for creating a new Abstraction Calculation. The parameters available to the page are described in the following table:

Value	Description	Example
Name	The name the result is stored under, and read by as AbstractionCalculation.Name. Unique within the Model.	DeclineRate24h
Active	Whether the calculation runs on invocation.	Checked
Locked	Prevents the calculation being edited or deleted.	Unchecked
Function	A VB .Net function fragment that assigns the result to Matched, and can read any of the values in Values Available to a Calculation. Required.	Matched = TTLCounter.Declined.RatioOf(TTLCounter.Total)
Report Table	Archives the value for SQL reporting and threshold analysis.	Checked
Response Payload	Returns the value in the response payload under AbstractionCalculations.	Checked

For example, to provide the square of an Abstraction Rule named Sum, add a calculation with the function below:

Matched = Abstraction.Sum.Times(Abstraction.Sum)

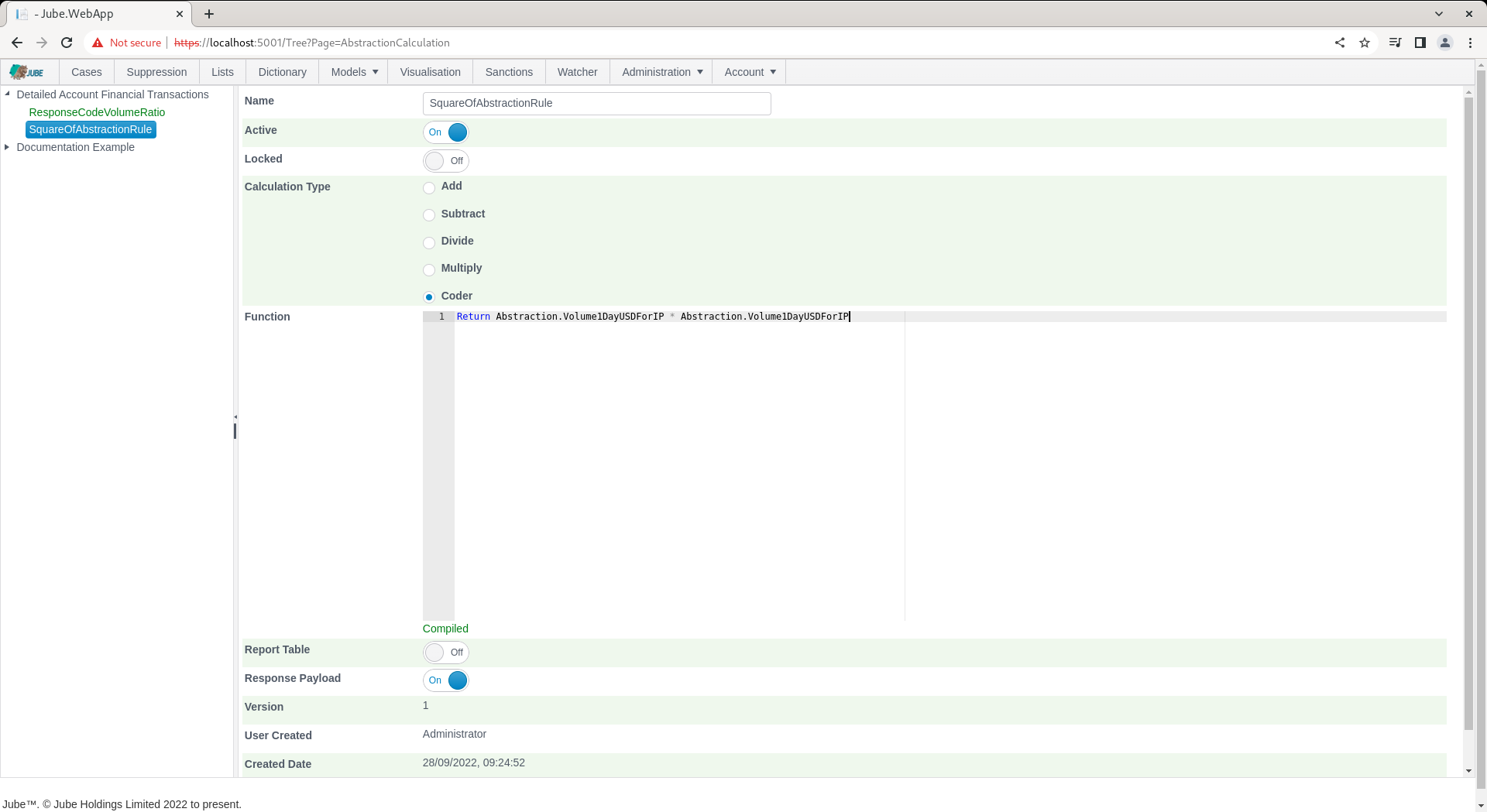

Upon the function fragment showing Parsed and Compiled, click Add to create the first version of the Abstraction Calculation. Synchronise the model via Entity » Synchronisation and repeat the HTTP POST to endpoint https://localhost:5001/api/invoke/EntityAnalysisModel/90c425fd-101a-420b-91d1-cb7a24a969cc for a response as follows:

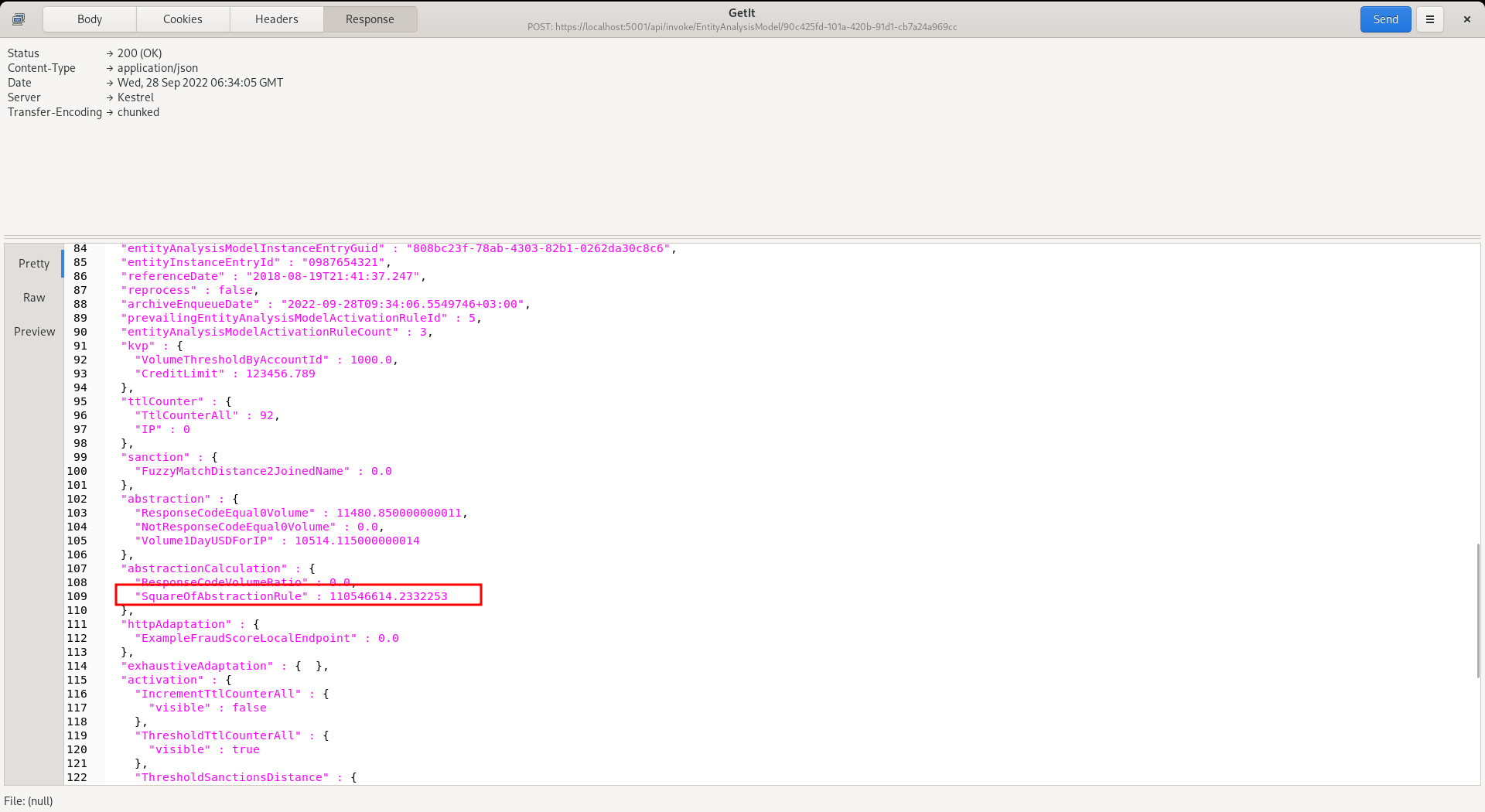

The result of the Abstraction Rule has been squared and presented in an AbstractionCalculations element. Far more complex functions can be embedded, indeed anything supported by the fluent methods, and the Abstraction Calculation can be used in later Activation Rules and models.

Abstraction Calculations as the Preferred Way to Create a Ratio

A ratio can be written inline in an Activation Rule, for example TTLCounter.DeclinedSpend.RatioOf(TTLCounter.TotalSpend), and that remains fully supported, but as a standard an Abstraction Calculation is the preferred construction, for these reasons:

Reason to use an Abstraction Calculation	What it means in practice
Reuse	The ratio is defined once and named. Ten Activation Rules read AbstractionCalculation.DeclineRate, and changing how the ratio is built changes it in one place.
One meaning	Every rule that reads the ratio agrees what it is, so thresholds on it can be compared and tuned.
It reaches models	Abstraction Calculations run before Exhaustive, HTTP and other model recall, so the ratio can be a model input as well as a rule input (see Where a Calculation Runs in the Invocation).
It is reportable	With Report Table enabled, the value is archived for SQL reporting and threshold analysis.
Organised concerns	The calculation defines the number, and the Activation Rule makes the decision, so each can be read, tested and changed on its own.
It is auditable	The value is recorded in the payload and response under its name, so a case shows what the ratio was when the rule fired.

As a standard, endeavour to put every ratio, and every other derived number, that an Activation Rule reads in an Abstraction Calculation, whether or not a second rule or a model uses it today, because the cost is one function and the value is then defined, visible and reportable. The Activation Rule then only compares it. Work it out in the rule where a calculation is not available: in a Gateway Rule, which runs before calculations, or where the number involves a model score, which is recalled after them. See Derived Values: Use an Abstraction Calculation.

Creating a Ratio for Activation Rules

To create a ratio of declined spend to total spend over one day:

1. Create the two TTL Counters (DeclinedSpend24h, TotalSpend24h), or Abstraction Rules, that hold the parts. See TTL Counters and Abstraction Rules.
2. Create an Abstraction Calculation named DeclineRate24h with the function:

Matched = TTLCounter.DeclinedSpend24h.RatioOf(TTLCounter.TotalSpend24h).ZeroIfUndefined()

1. Synchronise the model, and read the result in any Activation Rule as AbstractionCalculation.DeclineRate24h:

Matched = AbstractionCalculation.DeclineRate24h.MatchGreater(0.3)

More complex ratios, such as a ratio of ratios, are built from the same values:

Matched = TTLCounter.DeclinedCount.RatioOfRatios(TTLCounter.TotalCount, TTLCounter.DeclinedSpend, TTLCounter.TotalSpend).ZeroIfUndefined()

A calculation can be built from an earlier calculation, provided it was created after it (calculations run oldest first), for example a DeclineRateVersusNorm that divides AbstractionCalculation.DeclineRate24h by an average decline rate Abstraction Rule.

Where a Calculation Runs in the Invocation

Abstraction Calculations run after every value they can read has been produced, and before any model is recalled and before Activation Rules are evaluated:

Order	Stage	Reads or produces
1	Inline Functions, Inline Scripts, Gateway Rules	Adds derived values to the payload
2	Sanctions, TTL Counters, Abstraction Rules	Produces the counters, aggregates and sanction distances
3	Abstraction Calculations	Produces the ratios and other derived numbers
4	Exhaustive Adaptation	Recalls the in-process neural network models
5	HTTP Adaptations	Recalls remote models, in ascending Priority
6	Activation Rules	Evaluates rules, in Priority order, over everything above

It follows that a calculation can read a payload field, a TTL Counter, an Abstraction Rule, a Sanction, a Dictionary and an earlier calculation, but cannot read a model score, and that a model can read a calculation. A ratio is therefore the natural way to give a model a well-formed input, and the same ratio can then be thresholded directly by a rule. See Generalisation, Adaptation and Model Thresholds.

An Undefined Result

A fluent calculation that cannot produce a number, such as a RatioOf with a zero denominator, returns NaN. The function’s result is stored as it is returned, so a NaN is stored as NaN. A NaN fails every comparison in an Activation Rule, so a rule fails closed, but it is not a usable model input and it does not report cleanly.

Add .ZeroIfUndefined() to store zero for a result that is not a number or is infinite, as the removed arithmetic types did:

Matched = TTLCounter.DeclinedSpend24h.RatioOf(TTLCounter.TotalSpend24h).ZeroIfUndefined()

An error in the fragment, such as reading a Sanction that has no match, leaves the result at zero.

The consequence of storing zero is that it means “low” and also “unknown”, so a rule that fires on a low ratio fires on an entity with no history:

Matched = AbstractionCalculation.DeclineRate24h.MatchLess(0.05)

Guard any rule that reads a ratio from below with a count that proves the ratio is real, using Require so that an entity with too little history is rejected first:

Matched = TTLCounter.Payments24h.RequireGreaterOrEqual(10).Against(AbstractionCalculation.DeclineRate24h).MatchLess(0.05)

A rule that fires on a high ratio is safe from this, as an undefined ratio stored as zero does not exceed the threshold. Where the difference between “zero” and “undefined” matters, leave off ZeroIfUndefined() and let it be NaN, which fails every comparison.

Migrating Add, Subtract, Divide and Multiply Calculations

Calculations saved with an Add, Subtract, Divide or Multiply type are converted to the equivalent function by a database migration. The two Abstraction Rules that were selected as Left and Right become tokens, and the result keeps the old behaviour of storing zero for anything undefined:

Old type	Becomes
Add	Matched = Abstraction.Left.Plus(Abstraction.Right).ZeroIfUndefined()
Subtract	Matched = Abstraction.Left.Minus(Abstraction.Right).ZeroIfUndefined()
Divide	Matched = Abstraction.Left.RatioOf(Abstraction.Right).ZeroIfUndefined()
Multiply	Matched = Abstraction.Left.Times(Abstraction.Right).ZeroIfUndefined()

A space in an Abstraction Rule name is written as an underscore in the token, as the engine has always done. The results are the same as before, including a missing Abstraction Rule reading as zero.

A calculation whose Left or Right name cannot be written as a token (it is blank, or contains a character such as a hyphen or a full stop) cannot be converted safely. The migration deactivates it rather than guess, and records what it was as a comment in the function, so nothing is lost when the old columns are dropped:

' Converted from Divide: Refunds-Sum / Total.Sales. Rewrite this as a function, then activate it.

A comment is not a valid function, so the calculation cannot be activated until the comment is replaced with a real function, and a calculation that is not active is not compiled at model synchronisation. Find the ones to rewrite with:

select "Id", "Name", "FunctionScript"
from "EntityAnalysisModelAbstractionCalculation"
where "Active" = 0 and "FunctionScript" like '%Converted from %'

The same conversion is applied to the saved version history, so an earlier version of a converted calculation shows the function that replaced it, or the comment. A name in a comment is cut to 100 characters and to a single line.

The migration then drops the three columns that held the old surface, AbstractionCalculationTypeId, EntityAnalysisModelAbstractionNameLeft and EntityAnalysisModelAbstractionNameRight, from both the calculation and the version tables. They are no longer read or written. The migration adds the columns back, empty, if it is reversed, but it cannot restore what was in them, so take a database backup first.

Abstraction Calculation Faults

Symptoms of a misbuilt Abstraction Calculation, with the likely cause.

Symptom of an Abstraction Calculation	Likely cause
The value is always zero	A source is missing (name misspelt, or the source did not run), a source is a string field, the denominator is zero and ZeroIfUndefined() is used, or the fragment threw.
The value is NaN	An undefined result (a zero denominator) with no ZeroIfUndefined().
A ratio built on another calculation is zero	The other calculation was created later, so it has not run yet. Recreate them in dependency order.
A low-ratio rule fires on new customers	An undefined ratio is stored as zero. Add a Require guard on a count, or drop ZeroIfUndefined().
A calculation cannot read a model score	Models are recalled after calculations. Threshold the score in the Activation Rule instead.
A migrated calculation is inactive	Its Left or Right name could not be written as a token, and its function is a comment describing what it was. Rewrite it as a function. See the query above.
